Elevate your storage to new heights with our extension standard. Possible to create a solution to a total of 3450 mm. Seamlessly attach it below a standard, using an extension hang standard adapter. When adjusting the combined standards height, cut the extension standard.

• Increases the height of your storage solution.
• Securely attaches below a standard using the extension hang standard adapter.
• Cut extension standard to adjust the combined height for a personalized fit.
• W25 X d23 x h1148mm

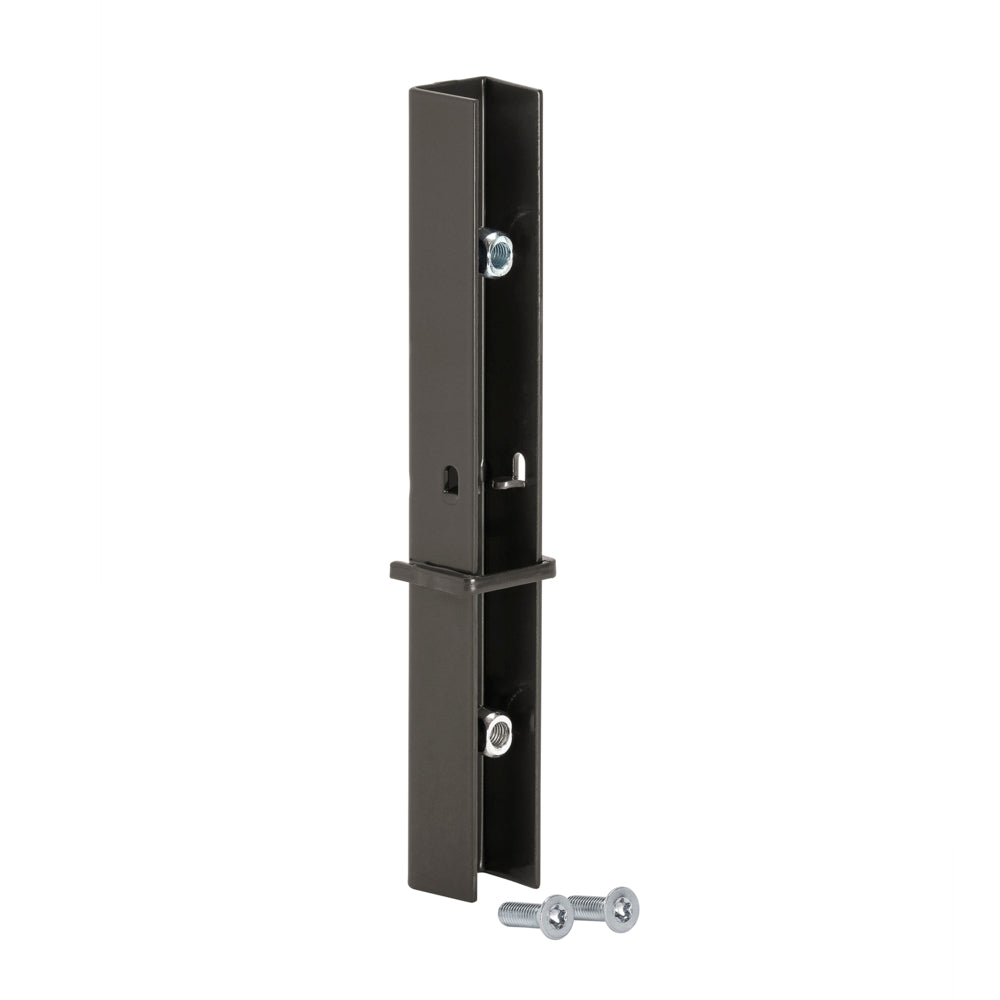

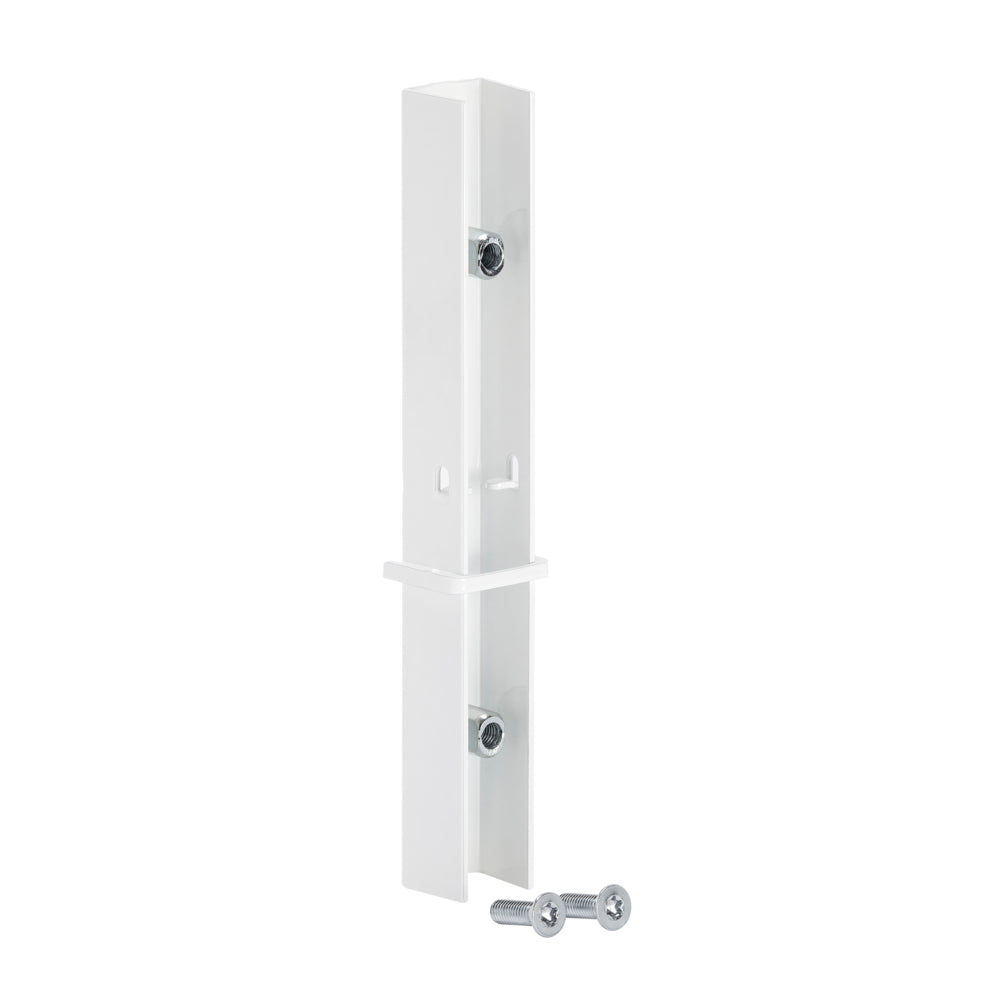

Extension hang standard adapter

Extend the height of your storage with the extension standard adapter. Combine with extension standard to reach a maximum height of 3450 mm. Effortless assembly is guaranteed, thanks to the included screws and allen key.

Adapter intended to join an extension hang standard with a hang standard.

Makes it possible to create 3450 mm high solutions.

Screws and Allen key included in packaging.

2 metal colours:

• Increases the height of your storage solution.
• Securely attaches a hang standard with an extension hang standard.
• Cut extension standard to adjust the combined height for a personalized fit.
• W25 X D23 X H160mm

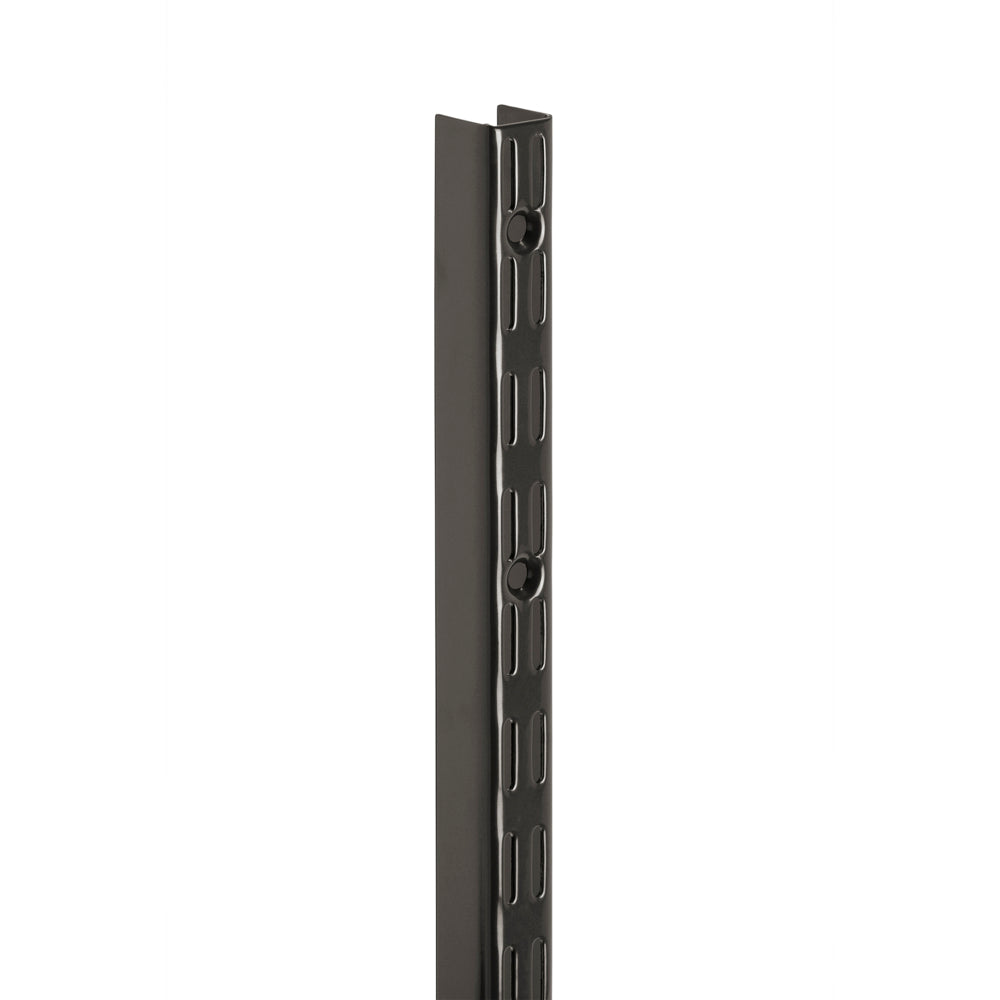

Special hang standard intended to fit below a hang standard, in order to join two standards. Combine with extension hang standard adapter.

Makes it possible to create 3450 mm high solutions.

Can be cut to size, in order to adapt them to the desired height. When adjusting the combined standards height, cut the extension standard.

Extension hang standards are made of high quality, epoxy-bonded steel. They have have two rows of slots, spaced 32 mm (1 ¹⁷/₆₄"") apart.

There are 4 screw holes in the 1148 mm extension hang standard.

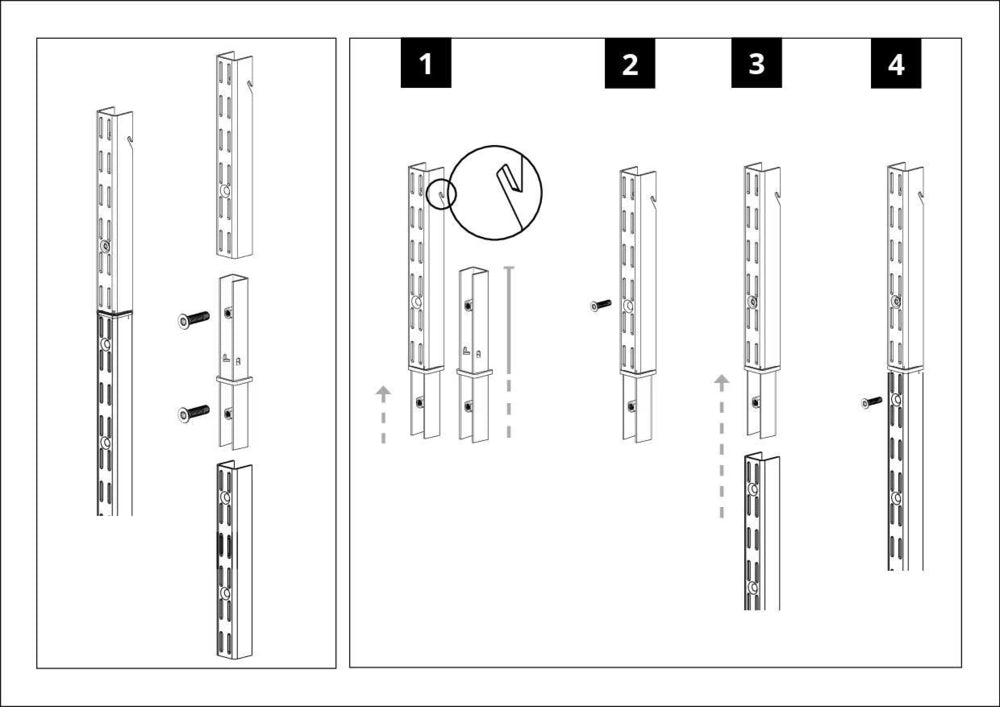

Assembly Instructions

 Step 1:Start by hanging the hang standard on the top track. Note that an extension hang standard can not be mounted on a top track - only onto a hang standard (using an extension hang standard adapter). Separate out the screws from the extension hang standard adapter. Bend out the hang standard slightly from the wall and slide the top part (A) of the extension hang standard adapter into the hang standard from underneath. The tallest part of the adapter is the top part.

Step 2: Fasten the adapter (B) with one of the screws by using a screwdriver.

Step 3: Slide the extension hang standard onto the adapter (C).

Step 4: Fasten with the remaining screw (D).

Step 5 (optional): If you want to fasten the hang standards to the wall with a screw, do it after all functions in the system are mounted, to ensure the correct position of the standards. It is not necessary to fasten the hang standard to the wall, the system will stay in place once loaded. It is an optional measurement in order to tighten the system better to the wall.

NOTE: When combining a hang standard with an extension hang standard and an extension hang standard adapter; only the middle screw hole in the hang standard can be used to fasten the hang standard into the wall (the bottom one is used for the adapter). Use only one screw hole on the hang standard, there is no need do use all of them when securing the system to the wall.
